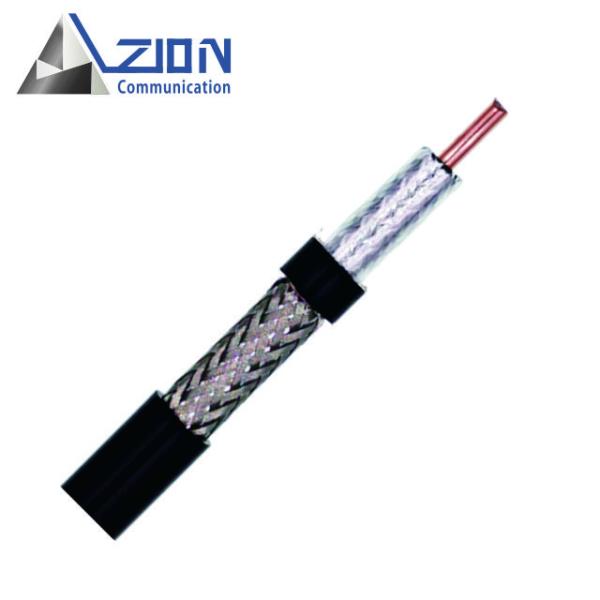

LLC 600 Coaxial Cable 4.47mm CCA Conductor 90% Tinned Copper Braid for GPS
Quick Detail:
- Low Loss 600
- 50 Ohm Coaxial Cable
- 4.47mm Copper Clad Aluminum
- Bonded AL-Foil
- Tinned Copper Braid
- PE Jacket Black
- Designed for Flexibility, Low Loss, RF Shielding
- 500M, 1000M, Wooden Drum, Pallet
- MOQ: 5KM
Description:
KT0507 LLC 600 Coaxial Cable 4.47mm CCA Conductor 90% Tinned Copper Braid for GPS
is a low loss, braided coaxial cable offers similar performance compared to corrugated
copper products but with higher flexibility and simplified connectorization.
Can be used in almost any application where handling characteristics, improved shielding
and low loss is required. LLC 600 is packed in 500M/1000M Wooden Drum,
and will be layed on pallet to protect the spool and easier carry.
Because of good managing methods, ZION’S price of 600 is not high although our quality is really high.
Applications:
Low loss at high frequency for radiocommunication and amateur radio.
| KT0507 LLC 600 Coaxial Cable 4.47mm CCA Conductor 90% Tinned Copper Braid for GPS |

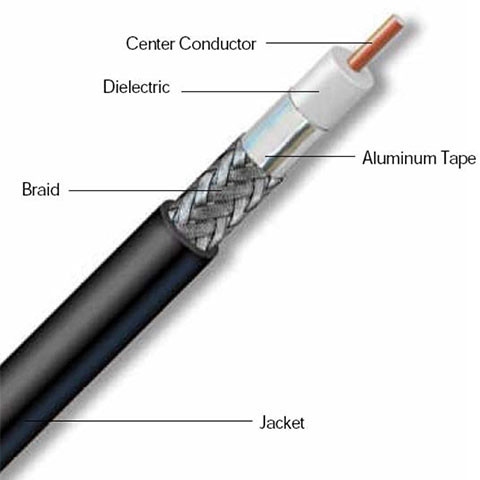

| Construction Parameters: |
| Inner Conductor | 4.47mm | Copper Clad Aluminium |
| Dielectric | 11.56mm | Foamed PE |
| First Shield | | Bonded AL-Foil |
| Second Shield | Nom. 12.50mm | Tinned Copper Braid |
| Jacket | 14.99mm | PE |
| |
| Electrical Characteristics: |
| Capacitance | 76.8 pF/m |
| Impedance | 50 Ω |
| Velocity of Propagation | 0.86 |
| Shielding Effectiveness(>dB) | 90 |
| Min.Bend Radius(mm) | 75 |
| Operating Temp Range (PVC) | -25 ℃ to 70℃ |
| Operating Temp Range (PE) | -40 ℃ to 80℃ |
| RoHS | YES |
| |
| Attenuation(20℃): |
| Frequency (MHZ) | Attenuation (dB/100m) | Avg.Power(KW) |
| 30 | 1.5 | 4.93 |
| 50 | 1.9 | 3.83 |
| 150 | 3.4 | 2.16 |
| 220 | 4.1 | 1.77 |
| 450 | 5.9 | 1.23 |
| 900 | 8.6 | 0.84 |
| 1500 | 11.4 | 0.63 |
| 1800 | 12.7 | 0.57 |
| 2000 | 13.4 | 0.54 |
| 2500 | 15.2 | 0.48 |
| 5800 | 25.0 | 0.29 |
| |
| Order Informations: |
| Marking | ZION LLC 600 COAXIAL CABLE xxx M |
| Inner Package | 500M / 1000M Wooden Drum |
| Outer Package | Pallet (or Per customer's request) |
| Delivery time | Normally 25 days after received the deposit. |
| More informations | please contact with us. |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and ZION.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
